抓斗机卷筒电缆

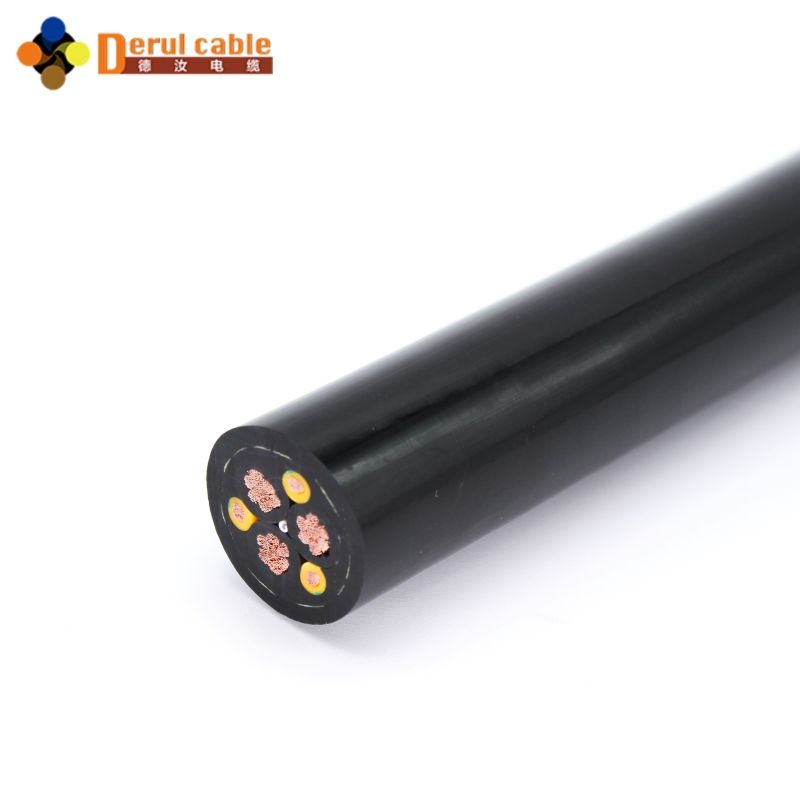

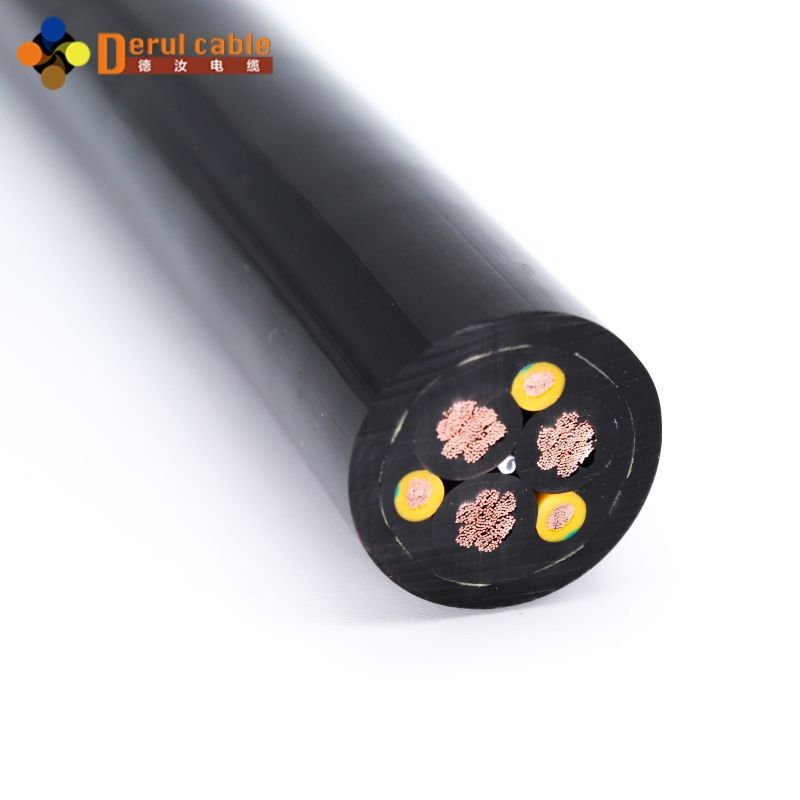

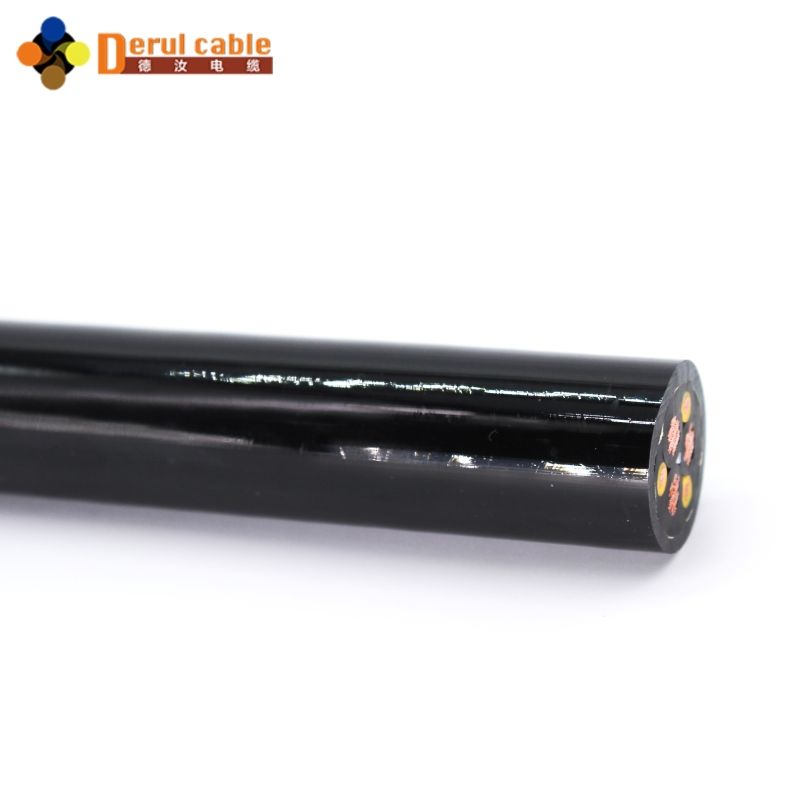

Derul Double Sheath Reeling Cable for Crane System
产品简介
| Basic structure | Conductor+Insulation+Jacket |
| Conductor | Plain Copper/ Tinned Copper |
| Insulation | EPR |
| Braid | Kevlar/ Plain Copper/ Tinned Copper |
| Jacket | PUR/TPE/PCP |
介绍
Detail Information
| Conductor | Stranded Oxygen-Free Copper Wire(VDE0295 CLASS5) | Rated Voltage | 0.6/1 kV |
| Insulation | Special Elastomer Insulation | Test Voltage | 3500V/5min |
| Color Code | Black Number | Min. Bending Radius: | |
| Fiber Optic | No | Fixed Installation | 6 X Outer Diameter |
| Stranding | Stranded, with Strength Member Filled in the Middle/Side | Mobile Installation | 10 X Outer Diameter |
| Inner Jacket | Oil/Wear Resistant PUR/NBR Jacket | Max. Tension | 15N/mm² |
| Strength Member | Kevlar Fiber Braiding | Max. Traveling Speed | 180m/min |
| Outer Jacket | Oil/Wear Resistant PUR Jacket | Working Temperature: | |
| Jacket Color | Yellow/Black | Fixed Installation | -25℃-+70℃ |
| Flame Retardant | IEC60332-1 | Mobile Installation | -15℃-+70℃ |
A reeling cable is also known as a cable reel or coiled cable, is a specialized type of electrical cable designed for applications where frequent flexing, bending, and winding/unwinding are common. These cables are commonly used in various industries and applications, such as cranes, hoists, robotics, and automated machinery. Reeling cables are constructed to withstand the mechanical stresses associated with constant movement and coiling, ensuring reliable power and signal transmission in dynamic environments. Their features contribute to the seamless operation of machinery and equipment in dynamic environments.
Also, the cable is suitable for towing chain system, port machinary system, handling equipment, as well as applications in moist indoor and outdoor area.
| Type No. | Core No. & Section Area | Appx. Weight kg/m | Appx. Outer Diameter mm±10 | Max. Tension N |
| 1 | 4G1.5 | 0.28 | 14.3 | 90 |
| 2 | 4G2.5 | 0.35 | 15.3 | 150 |
| 3 | 4G4.0 | 0.46 | 17.0 | 320 |
| 4 | 4G6.0 | 0.61 | 19.5 | 480 |
| 5 | 4G10 | 0.92 | 23.0 | 800 |
| 6 | 4G16 | 1.31 | 26.5 | 1200 |
| 7 | 4G25 | 1.86 | 31.2 | 2000 |
| 8 | 4G35 | 2.45 | 34.8 | 2800 |
| 9 | 4G50 | 3.30 | 40.0 | 4000 |
| 10 | 4G70 | 4.42 | 44.0 | 5500 |
| 11 | 4G95 | 5.60 | 50.8 | 7500 |
| 12 | 4G120 | 7.35 | 58.0 | 9500 |
Like its similiar types known as NSHTOEU and NSHTOU, the cables are made under the DIN VDE 0295 Class 5 and IEC 60228 Class 5 standards, and are also up to the requirements of IEC60811-2-1 and IEC60332-1.
选择德汝电缆的理由
Derul's reeling cables are designed to be highly flexible, which makes them to endure repeated bending and flexing without influencing their electrical performance. Thus flexibility of these cables is vital in applications where constant movement and changes in orientation are required.
The materials used in reeling cables are selected for their durability and resistance to wear and tear. Common materials include high-quality thermoplastic or elastomeric compounds, which provide both flexibility and stability. Our reeling cables often consist of multiple conductors bundled together within a single sheath. This multi-conductor configuration allows for the simultaneous transmission of power, control signals, and other data. Also they are designed to withstand the mechanical stresses associated with continuous movement, twisting, and bending.
The construction includes features such as strain relief elements to prevent damage to the conductors during flexing. They are often equipped with abrasion-resistant materials to withstand friction and contact with surfaces during movement. In industrial settings, they may be designed to resist the effects of oils, chemicals, and other substances commonly found in manufacturing environments. The extreme temperature resistance is also one feature we considered important. Derul typically manufacture the reeling cables under industry standards and regulations to ensure the reliability and safety in different applications.
In summary, Derul Reel cable is :
Flexible, bend resistent
Tensile, tear resistent, stable performance
Good oil resistent, wear resistent, cold resistent, weather resistent, acid and alkali resistent, UV resistent, suitable for outdoor application.
定制能力
Whenever standards are not enough!
Considering different working conditions and equipment to be applied to, Derul's products are highly customized. The high customization of our cables can make sure that our products can best meet the demands in your practical application. We welcome you to send an inquiry with specific requirements to our professional sales, and we will provide a technical sheet with drawings of the cable and detailed specifications to you, and of course, a competitive quotation will be send to you soon after your confirmation on the technical sheet. This can lead to your successful and efficient purchasing.
You don't need to worry about the time cost of your customized purchasing. As the original manufacturer, we provide quick-response and "solution at once" services. Comparing to less-efficient communication about technical and quality issues with trading companies, we give our customers efficient feedback to every question raised from them, this is possible because of the close interconnection between our workshop, engineers and sales people.
常问问题
Q: 你们是制造商还是贸易公司？
A: 我们是一家位于上海的柔性电缆制造商。 我们自 2013 年成立以来，欢迎您随时来我们工厂参观。
Q: 价格可以商量吗？
A: 是的，价格是根据采购数量协商的。
Q: 常规最小起订量是多少？
A: 对于库存产品，没有最小起订量； 定制产品的起订量通常为100-300m。
Q: 你们提供样品吗？ 样品费用是多少？
A: 是的，我们可以为客户提供样品，库存样品是免费的。
Q: 你们生产定制电缆吗？
A: 是的。 我们可以根据您的要求定制电缆。 请与我们分享您的要求，以便我们理解并提供技术图纸。
Q: 你们有 OEM 服务吗？
A: 是的，我们可以根据您的样品或技术图纸生产产品，并在上面印上您的标志或名称。
Q: 常规生产时间是多少？
A: 这取决于购买金额和产品类型。 通常需要大约 10-20 个日历日。
